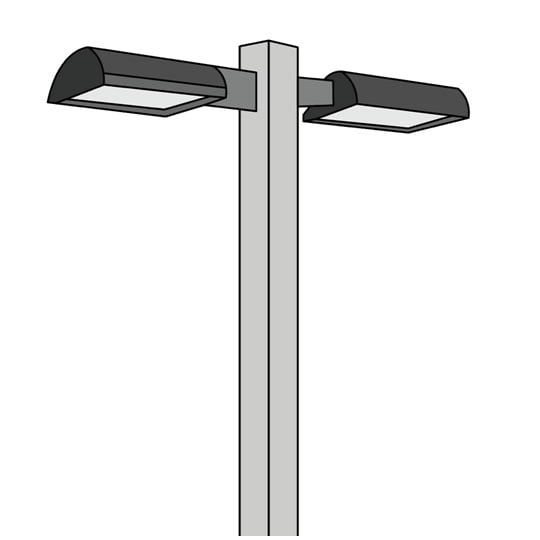

LED Double 30′ Square Pole Kit 300 Watts

Description

JLD Series Area Light

SPECIFICATIONS
DRIVER COLOR UNIFORMITY
One Driver, Constant Current, Class I, ORE’s range of CCT (Correlated Color Temperature) follows
120-277V, 480V, 50-60Hz, Power the Chromaticity of Solid-State Lighting (SSL) Products
Factor 98%, IP67
AMBINET TEMPERATURE
THD Suitable for use in -40°F to 131°F (-40°C to 55°C)
20% at 100-277V. 10% at 220-240V.
HOUSING
SURGE PROTECTION One piece die-cast aluminum housing with integral heat-sink
10KV line – earth fins
LIFESPAN IP RATING
100,000 – hour LED lifespan based Ingress Protection rating of IP65 for dust and water
on IES LM-80 results and TM-21 calculations.
FINISH
LED Formulated for high-durability and long-lasting color
Multi-chip, high-output, long-life,
LUMILEDS 3030 LED Chips GREEN TECHNOLOGY
Mercury and UV-free. RoHS compliant components.
COLOR TEMP Polyester powder coat finish formulated without the use of
4000k (Neutral) VOCs or toxic heavy metals
5000K (Cool)
WARRANTY
5 year limited warranty. Comprehensive warranty terms
EFFICACY can be located on www.orelighting.com
Above 130 lumens per watt
TYPE

Square Non-Tapered Steel Pole
SPECIFICATIONS
POLE SHAFT
BASE PLATE
ANCHOR BOLTS
HANDHOLE
FINISH
SIDE DRILL
Houston, Texas
Note: Information contained herein is subject to change without notice.

The pole shaft is a one section design, each section being fabricated
from standard 11 gauge (0.1196″) steel. The pole shaft material is a
weldable grade hot rolled commercial quality carbon steel with a
guaranteed minimum yield strength of 55,000 psi after fabrication. Each
section is one-piece construction with a full length longitudinal weld and
is cylindrical in cross-section having a uniform taper of 0.14 inches of
diameter change per foot of length.
The anchor base is fabricated from commercial quality hot rolled carbon
steel plate that meets or exceeds a minimum yield strength of 36,000 psi.
The anchor base telescopes the pole shaft and is circumferentially
welded top and bottom. All welds are performed in accordance with the
American Welding Society specification AWS D1.1, latest edition.
Anchor bolts are fabricated from commercial quality hot rolled carbon
steel bar that meets or exceeds a minimum yield strength of 55,000 psi.
Four properly sized anchor bolts, each with two regular hex nuts and
washers, are furnished and shipped with all poles unless otherwise
specified. Anchor bolts shall have the threaded end galvanized a
minimum of 8 inches in accordance with ASTM A153. Fully galvanized
anchor bolts are available upon request.

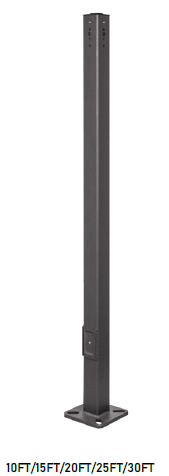

10FT/15FT/20FT/25FT/30FT
An oval reinforced gasketed handhole, having a nominal 3” x 5” inside
opening, located 1’-6” above base, is standard on all poles. A grounding
provision is located inside the handhole ring.
Galvanized – All exterior and interior metal surfaces are hot dip
galvanized in accordance with ASTM A123. During the hot dip
galvanizing process the molten zinc reacts with the steel surface forming
a barrier that becomes an extension of the steel surface.
Standard length poles are predrilled holes on 4 side, with a Tenon
standard packaged on top. Also with hole plugs for unused predrilled
locations.

*Please consult with LED Spot for lead time estimates.
