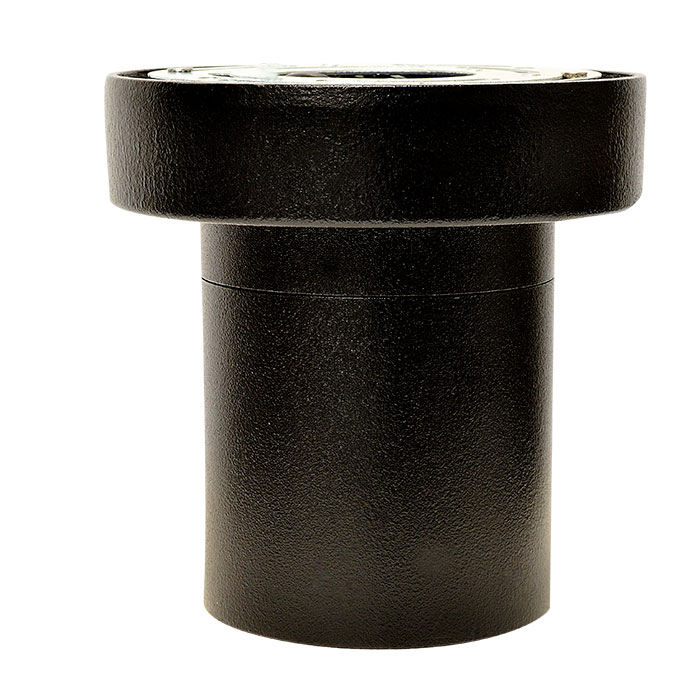

Aluminum Surface Mount Fixture and Canopy

Description

CONSTRUCTION:
ALUMINUM: Aluminum Canister; includes cast FA-24-LGCST aluminum canopy
LENS: High impact clear tempered flat glass
O-RING: High temperature red silicone
LIGHT SOURCE: 50,000 hour integrated LED module:
7w – 450 lumen, 3000K warm white (equivalent to 35w Halogen)
11w – 600 lumen, 3000K warm white (equivalent to 50w Halogen)
15w – 900 lumen, 3000K warm white (equivalent to 75w Halogen)
OPTICS: 15° spot, 40° flood, 60° wide flood or 160˚ widest flood (no optics)
12v DRIVER: Integrated on-board, no external driver required. 12vAC/DC input
120v DRIVER: Internal 120vAC input, 12vAC output LED driver
120v/277v DRIVER: External 90-277vAC Input, 12vDC output LED driver
SOCKET: LED module – integrated hard wire, no socket
WIRING 12v: Black 4 foot 18/2 zip cord from base of fixture
For 25 foot 16/2 fixture lead wire add -25F to catalog number.
WIRING 120v: Standard 120v Black/White/Green wiring inside fixture housing.
MOUNTING: FA-24-LGCST canopy with mounting hardware supplied
FINISH: Aluminum – Black texture polyester powder coat, optional finishes available
